Home>Arduino>UNO R3>UNO R3 Project Most Complete Starter Kit w/Tutorial Compatible with Arduino IDE (63 Items)

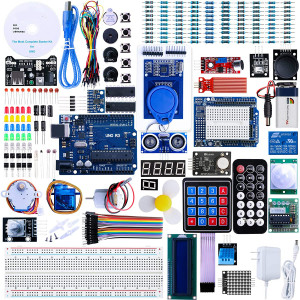

UNO R3 Project Most Complete Starter Kit w/Tutorial Compatible with Arduino IDE (63 Items)

UNO R3 Project Most Complete Starter Kit w/Tutorial Compatible with Arduino IDE (63 Items)

US$ 39.70

Copy and share this link on social network or send it to your friends

Copy
    • Product Name: UNO R3 Project Most Complete Starter Kit w/Tutorial Compatible with Arduino IDE (63 Items)
    • Item NO.: UNO03
    • Weight: 0.8 kg = 1.7637 lb = 28.2192 oz
    • Volume: 0.09 CBM
    • Category: Arduino > UNO R3
    • Tag: UNO R3
    • Creation Time: 2020-11-27

    About this item

    • More than 200 components, this is the most complete starter kit you will find. Great value starter kit with 63 kinds of electronic components.
    • Has all the components you need and a free PDF tutorial (more than 30 lessons) to show you how to use them. All code to use the modules is included on the CD.
    • All the modules come soldered so they are easy to wire up.
    • Includes R3 controller board and USB cable, 100% compatible with Arduino IDE Official R3, Official kit.
    • Kit comes packaged in compartmentalized case with a bonus box for small parts like LED’s, IC’s, buttons, diodes, etc.

      UNO R3 Starter Kit provides an open-source electronics prototyping platform based on flexible, easy-to-use hardware and software, which evolves the user from beginner to professional level.


      Our starter kit is designed to get you started quickly and easily on your path of learning electronics. Originally this pack was designed to follow the introductory tutorials with 33 creative and fun projects on our CD and website. But it's a great starter kit in general as it's designed for everyone even novices who has very little or no electronics and programming experience. The starter bundle contains everything you need (except tools) to take your first step on Arduino journey!

      Starter kit that everyone can use to learn electronics and programming

      Electronics is not as complicated as you imagine especially with UNO R3 Starter Kit. For advanced users like professional lab engineers, electronic major students and experienced Arduino hobbyists, they can use this kit to do various kinds of tests and experiments with so many sensors available at hand.

      What about novice users who don't have any electronics knowledge? Fear not amigo. Just follow our tutorial enclosed and step by step you will come to realize that learning electronics is more fun than you ever expected with this amazing sensor kit.

      It’s a good choice and perfect gift for your friends, family or kids who are obsessed with electronics, programming or robotics to take their first steps on electronics journey!

      The most complete starter Kit with high quality components and sensors

      Quantity and quality are both important here in UNO R3 starter kit. The most essential parts in this kit are UNO R3 controller board and expansion board, which is a perfect Arduino clone with excellent product finish. Besides, we offer other over 60 kinds of components and sensors from small parts like LED diodes, resistors and potentiometer to big parts like LCD1602, RFID module and 830 tie-points breadboard, which meet your demands for your different projects either it is simple or complex.

      Sturdy quality is definitely the most important thing to even with so many components provided we never compromised on the quality. Instead we keep improving our product quality in our own factory and we produce the products by ourselves under high standards and strict quality control. Pins and wires on some of the parts like LCD16502 and motors have been pre-soldered which is very convenient and saves your time.

      74HC595 Shift Register and LEDs

      74HC595 is a Serial to Parallel Converter which has eight outputs (perfect) and three inputs that you use to feed data into it a bit at a time.
      This chip makes it a little slower to drive the LEDs (you can only change the LEDs about 500,000 times a second instead of 8,000,000 a second) but it's still really fast, way faster than humans can detect, so it's worth it!
      74HC595 shift register is a type of chip that holds what can be thought of as eight memory locations, each of which can either be a 1 or a 0. To set each of these values on or off, we feed in the data using the 'Data' and 'Clock' pins of the chip.

       LCD1602 Display module

      LCD1602 module is a display that has an LED backlight and can display two rows with up to 16 characters on each row. You can see the rectangles for each character on the display and the pixels that make up each character. The display is just white on blue and is intended for showing text.
      Lining up the display with the top of the breadboard helps to identify its pins without too much counting, especially if the breadboard has its rows numbered with row 1 as the top row of the board. Do not forget, the long yellow lead that links the slider of the pot to pin 3 of the display. The 'pot' is used to control the contrast of the display.

       DC Motors and L293D Transistor

      In this project you will learn how to control a small DC motor using an UNO R3 and a L293D transistor, which is a very useful chip. It can actually control two motors independently. We are just using half the chip in this lesson, most of the pins on the right hand side of the chip are for controlling a second motor.
      L293D is quadruple high-current half-H drivers and designed to provide bidirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. The L293D is also designed to provide bidirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V and drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.



Customer Reviews

4.4

2016-07-14

E****s
Everything as mentioned, came with US charger and British plug, everything packed perfectly, items arrived not damaged, delivered earlier than expected.

2016-07-08

T.****es
Very complete allowing to experiment many arduino projects. Loving it!

2016-07-02

Br****rt
an excellent kit. with everything included here, i have been able to follow just about every beginner youtube tutorial video and have every part the video uses.everything is in working order, nothing is broken appart from 2 slightly bent pins which were easily corrected. im good with electronics, but i am bad with programing, but using this kit i am quickly starting to learn. i have already started on building a Mars Rover project

2016-06-20

MR****AL
I've been thinking of getting an arduino based product for some time, but never quite got round to it. I then spotted the Elegoo “Most Complete Starter Kit” last week and it had more items included in the price than similar starter kits available.It arrived quickly and I was not disappointed. The UNO R3 board is good quality and has clear labelling on it, which is very useful for a beginner. The kit came with all the components you would need when starting out, plus a CD with all the code and libraries that go with those components. The CD also contains a user guide with many lessons available. Combining this with the main arduino website & forums, it was easy to get it up and running. I had the software installed on my PC (tried both Linux & Windows with no issues) and had the blink program loaded in minutes! I have also tried many (but not all) if the accessories that were supplied and they are all of a good standard and are in working order.All was supplied in 2 handy storage cases to protect all the components and keep them in one place. I also thought it was a nice touch providing a plastic base and mounting screws for the board to keep it steady while in use.I look forward to many hours of using this product and working my way through the tutorials!

2016-06-16

Mr****rs
Received this today so have not tried all the components. Two points I have picked up on straight away is that the power supply is for the American market not British, and the relay component is not fitted to a circuit board, so of no use whatsoever. I will update this review when I have tried the other components.
