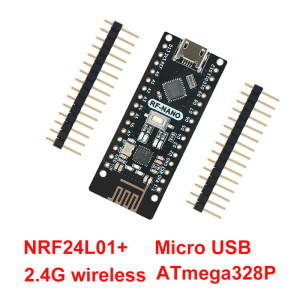

Nano V3.0 with NRF24l01+,Micro USB,ATmega328P,2.4G wireless For Arduino QFN32 5V CH340 USB Driver Nano Board With The Bootloader

Nano V3.0 with NRF24l01+,Micro USB,ATmega328P,2.4G wireless For Arduino QFN32 5V CH340 USB Driver Nano Board With The Bootloader

US$ 8.51
Size

Copy and share this link on social network or send it to your friends

Copy
    • Product Name: Nano V3.0 with NRF24l01+,Micro USB,ATmega328P,2.4G wireless For Arduino QFN32 5V CH340 USB Driver Nano Board With The Bootloader
    • Item NO.: Nano01
    • Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
    • Category: Arduino > Nano
    • Tag: Arduino Nano
    • Creation Time: 2020-12-03


    Main Feature
    1.Creative products, RF-Nano-Board: Keywish Upgraded nano board for arduino, The main chip is ATMEGA328P-MU QFN32,the latest bootloader (Arduino IDE 1.8.8) was burned down. It is fully compatible with the common nano board. RF-Nano-Board is PIN-PIN with Arduino Nano V3.0,and share the same codes.
    2.More convenient for application: Emakefun RF-Nano-Board integrates a NRF24L01+ module with arduino nano v3.0 board, which is very convenient for 2.4G wireless connect application.
    3.High quality material and Technology: We used high quality PCB original material and Immersion Gold Technology to make sure every board has smooth edge and more reliable.
    4.Super small volume design, more convenient to use: The PCB size is only 48mm*19mm, the pin is fully compatible with Nano V3.0,No Soldering needed. The micro usb port is more convenient to use.
    5.Complete Information reference: Keywish RF-Nano-Board using CH340 chip to UART, you can download mac, windows, linux three system drivers, data sheets and schematics and other informations from     https://github.com/keywish/keywish-nano-plus/tree/master/RF-Nano, we provide quick and free support.
    Specification:
    Microcontroller ATmega328P
    Nrf24L01+ 2.4G wireless
    Architecture AVR
    Operating Voltage 5 V
    Flash Memory 32 KB of which 2 KB used by bootloader
    SRAM 2 KB
    Clock Speed 16 MHz
    Analog I/O Pins 8
    EEPROM 1 KB
    DC Current per I/O Pins 40 mA (I/O Pins)
    Input Voltage 7-12 V
    Digital I/O Pins 22
    PWM Output 6
    Power Consumption 19 mA
    PCB Size 48 x 18mm
    Weight 7 g
    Package including:
    Keywish Nano x1
    Note: Please use Arduino IDE 1.8.6 or higher version, First, install the CH340 driver,then follow this selection path in Arduino IDE:Tools -  Board“Arduino Nano” Processor “ATmega328P",
    otherwise you'll find that you can't burn any program. Please refer to our github link,it can help you to slove any problem.


    RF-NANO-08RF-NANO-05RF-NANO-07RF-NANO-03Catch(05-18-16-1(05-18-16-30-32)
