Home>Mirco:bit>Extension Board for Micro:bit V2.0 Support 8 Servos and 4 DC Motors with Onboard Infrared Receiver and 4 RGB Full Color Lights

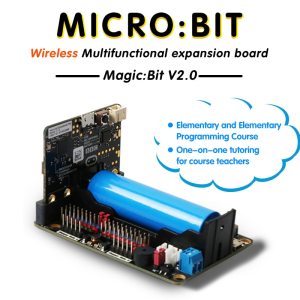

Extension Board for Micro:bit V2.0 Support 8 Servos and 4 DC Motors with Onboard Infrared Receiver and 4 RGB Full Color Lights

Extension Board for Micro:bit V2.0 Support 8 Servos and 4 DC Motors with Onboard Infrared Receiver and 4 RGB Full Color Lights

US$ 17.90
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart
Estimate Shipping Cost
Share:
>

Copy and share this link on social network or send it to your friends

Copy
Detail
    • Product Name: Extension Board for Micro:bit V2.0 Support 8 Servos and 4 DC Motors with Onboard Infrared Receiver and 4 RGB Full Color Lights
    • Item NO.: Microbit3
    • Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
    • Volume: 0.01 CBM
    • Category: Mirco:bit
    • Tag: microbit
    • Creation Time: 2020-12-09

    Features:
    1.Compatible with Lego, use different blocks to build and cooperate with MagicBit to achieve more creative functions and give full play to students' creativity.

    2. With On-board Micro-usb interface charger and 3.7V lithium battery holder provide better energy source for the product.

    3. Supports driving 8 servos and 4 DC motors at the same time.

    4.Supports driving two 4-wire stepper motors.

    5. With 4 RGB full-color lights on board and 1 Passive Buzzer.

    6. With on-board infrared receiver, infrared remote control via infrared remote control

    7. Contains a PH2.0-4Pini2c interface, the anti-reverse design of the interface is more secure and convenient.

    8. With 1 PH2.0-4PinRGB ultrasonic (RUS-04) module interface.

    Parameter:
    PCB board thickness: 1.6mm
    Small round hole diameter: 3.7mm
    Large round hole diameter: 4.6mm
    Product size: 86mm × 57mm × 23mm
    USB input voltage: 5V

    Note: There no battery in the package.


Customer Reviews

4.5

2020-10-16

Ma****ng
There are other boards similar to this. Other ones have more gold fingers, but this has a nice pin layout which I like very much. It has other products designed to compliment it.

2020-07-21

O****y
Great little Microbit expansion board.Has a nice combination of connections, and capabilities.Supports 4dc motors or 2 stepper motors. IR sensor. Buzzer, built in charger.
