Home>Mirco:bit>Expansion Board for Micro:bit GPIO Expansion Python IO:bit 5V with On Board Passive Buzzer
Expansion Board for Micro:bit GPIO Expansion Python IO:bit 5V with On Board Passive Buzzer

Expansion Board for Micro:bit GPIO Expansion Python IO:bit 5V with On Board Passive Buzzer

US$ 7.10

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
Expansion Board for Micro:bit GPIO Expansion Python IO:bit 5V with On Board Passive Buzzer
color:red,size:xxl
Subtotal: US$ 0
View My Cart
    • Product Name: Expansion Board for Micro:bit GPIO Expansion Python IO:bit 5V with On Board Passive Buzzer
    • Item NO.: Micro:Bit5
    • Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
    • Volume: 0.01 CBM
    • Category: Mirco:bit
    • Tag: microbit
    • Creation Time: 2020-12-09

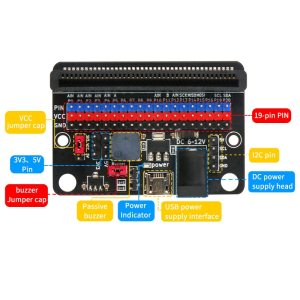

    Features:
    1.IO: bit expansion board is a powerful micro:bit expansion board, which leads to 19 PIN pins of the Microbit Board.

    2.Each PIN pin has VCC and GND corresponding to it. You can freely switch VCC to 3.3V or jumper cap. 5V; with 3 independent 3V3 and 5V pins, the wiring is more flexible and diverse;

    3.I2C SDA and SCL pins and the corresponding 5V and GND pins are provided for module
    connections such as LCD1602 LCD display for I2C communication more possibilities;

    4.With on-board passive buzzer, connected via jumper cap;

    5.Power supply method includes DC head and USB socket power supply.

    Parameter:
    PCB board thickness: 1.6mm
    Small round hole diameter: 3.0mm
    Large round hole diameter: 4.6mm (compatible with Lego holes)
    Product Size: 57mm / 39mm / 15mm
    USB input voltage: 5V
    DC head input voltage: 6-12V
